모델: V16

주요 특징:

플랫폼 용량: 230kg
최대 작업 높이: 17.7m
최대 수평 도달 범위: 7.3m

판매용 16m 관절형 붐 리프트

Jovoo V16 관절형 붐 리프트는 중간 높이의 어플리케이션을 위한 비용 효율적인 대안입니다. 오프로드 성능 면에서 동급 최고이며, 비용과 예산을 절감하기 위해 에너지 소비량이 낮은 환경 친화적인 기계입니다.

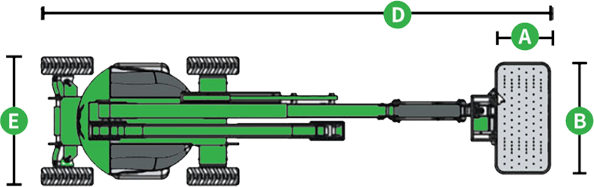

A --- 플랫폼 폭 : 0.76m

B --- 플랫폼 길이 : 1.4m

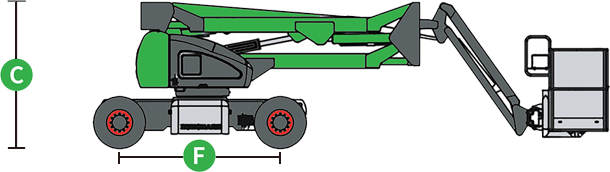

C --- 기계 높이 : 2.0m

D --- 기계 길이 : 7.2m

E --- 기계 폭 : 1.90m

F --- 휠베이스 : 2.0m

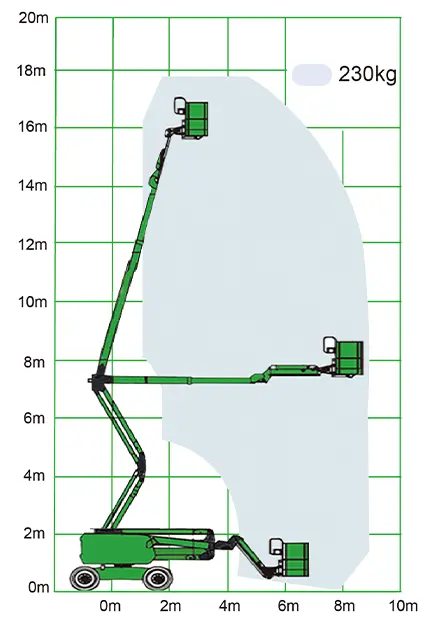

16m 관절형 붐 리프트: 비디오 및 범위

16m 관절 붐 리프트 세부 정보

명세서

특징

옵션

명세서

특징

옵션

Specifications

Model	V16
Max Working Height	18m
Max Platform Height	16m
Max Crossing Height	7.3m
Max Working Radius	8.9m
Rated Load Capacity	230kg
Platform Occupancy	2 Persons
Ground Clearance (Center)	0.2m
Platform Rotation	±80°
Turntable Rotation	355°
Vertical jib Rotation (Up/Down)	±70°
Walking Speed (Stowed)	5.0km/h
Max Gradeability (Stowed)	30%
Machine Weight	6630kg
Battery	48V/420Ah
Control Voltage	24V
Pump Motor	4kw
Driving Motor	3.3kw

Features

The V16 articulating boom lift is equipped with safety protection measures such as tilt alarm, fault alarm, automatic leveling, etc. The booms are all made of high-strength steel plates to ensure the safety of personnel;
Users can operate the machine with handle instead of switch, hence the micro-movement is smoother and the impact is reduced;
The performance of hydraulic components is improved as the entire line of oil cylinders, valve groups, oil pipes and joints are allfrom international standard brands, and have undergone extreme tests to ensure reliability and reduce failure rates; balancing valves and hydraulic locks are arranged to lock the position of the oil cylinders during high-altitude operations;
The overall structure adopts high-strength steel plate, the weight of the whole machine is reduced by more than 10%, and the shrinking running width is reduced by 15%, which ensures the flexibility and driving ability of the whole machine, and expands the application fields; theworking bucket is made of aluminum alloy, light and beautiful;
By way of weight reduction and optimization of hydraulic and electrical system performance, energy consumption is reduced and construction cost are saved;
Adopting the follow-up technology, the working platform can beautomatically leveled without additional operation during working, safer and more stable;
Battery management module adoptshigh-performance charger with a well configured charging curve, greatly improving charging efficiency and battery life;
The whole machine adopts anew type of joint bearings and sliders, so it is lubrication-free, reducing maintenance and use cost.

Options

Solid, non-marking tires
Mechanical Anti-Extrusion Protection System
Air tube connection to platform option
Lithium battery and power plus generator
Aluminum alloy and insulated working bucket
Cold-resistant, fire-resistantand biodegradable hydraulic oil
